Selection Guide-Ceiling Fans

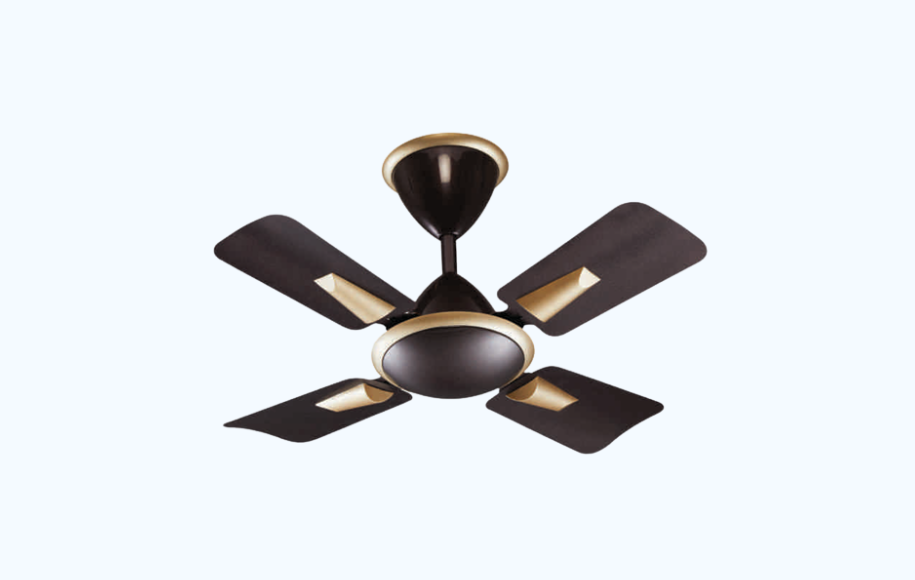

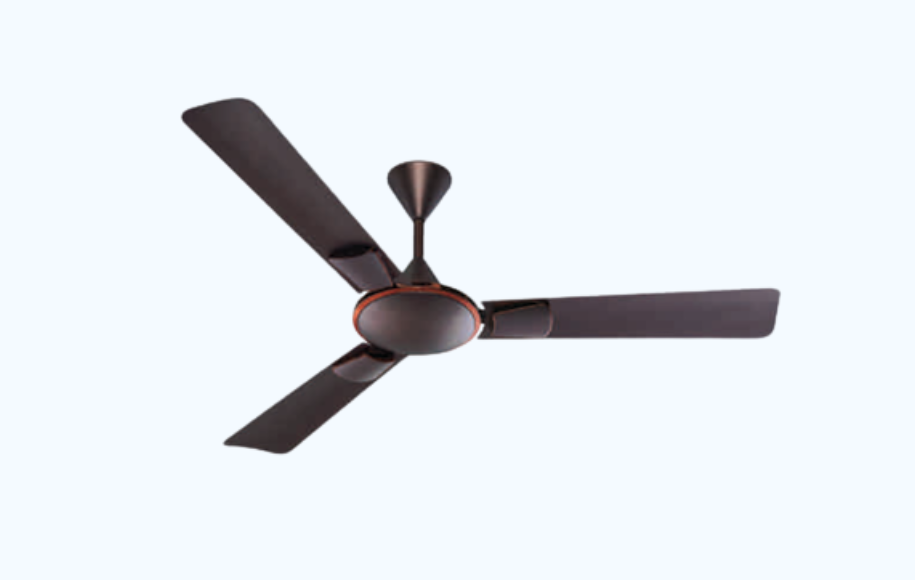

We have a wide range of fans in ceiling- 600mm & 900 mm, 1050mm, 1200mm in high speed & 1050mm, 1200mm & 1400mm in normal speed in all models.
Recommended Sweep for different room sizes :
Room Size | Fan Sweep |
---|---|
For small shops, cabins & ceiling | 600 mm (24") |
2.4 mtr x 2.7 mtr to 2.4 mtr x 2.4 mtr (8' x 10') to (8'x8') upto 6.5 sq. mtr | 900 mm (36") |
2.7 mtr x 3.3 mtr to 3 mtr x 3 mtr (9' x 11') to (10'x10') upto 9 sq. mtr | 1050 mm (42") |
3.3 mtr x 4 mtr to 3.7 mtr x 3.7 mtr (10' x 13') to (12'x12') upto 14 sq. mtr | 1200 mm (48") |
4 mtr x 5 mtr to 4.5 mtr x 4.5 mtr (13' x 16') to (15'x15') upto 20 sq. mtr | 1400 mm (56") |
To optimize the air delivery, ceiling fan should be approximately 10 feet from the ground level and 1 feet below the ceiling.
For larger room with more than one fan, the centre distance between each fan would vary with the sweep/size of the fan as below
